Product Details:

Title Detail
Capacity 50 Kg/hr. to 500 Kg/hr.
Brand/Make SUPER CRYO
Automatic Grade Automatic
Raw Material Liquid CO2

Dry Ice Machine with Revert Recovery System

There is different type of machine used to make dry ice in different shapes. SUPER CRYO, offer the dry Ice Machine to make the dry ice in the shapes of Blocks and Pallets.

TECHNICAL DATA

  • Capacity of Dry Ice Machine: 50 Kg to 500 Kg/hr.
  • Shape of Dry Ice: Either Block or Pellet (Cylindrical)
  • Block Size/Pellet Size: Block-200 mm(L)x 200 mm(W) x 100 to 250 mm thk/Pellets: 3 mm Dia x 5 to 15 mm length
  • Electric power : * KW (based on the capacity of dry Ice Machine)
  • Electric supply : 415/380 VAC/ 3 Phase/50 Hz
  • Liquid CO2 entry pressure : 19 to 21 Kg/cm2g
  • Liquid CO2 purity: 50 ppm of H2O Max.
  • Liquid CO2 Inlet pipe Size : ø 25 mm to 65 mm insulated (based on the capacity of dry Ice Machine)
  • CO2 Exhaust pipe Size = ø 80 mm to 250 mm (based on the capacity of dry Ice Machine)

When dry ice is produced the conversion rate from liquid CO2 to dry ice is approx. 45-50%. This means 55-50 % of the total amount of liquid CO2 is lost or vented to the atmosphere. Therefore, CO2 Revert Recovery Systems for Dry Ice Machines offer the best ideal possibility to recover this normally lost CO2 gas.

The vented CO2 gas from dry ice machine can be added at the inlet of CO2 Gas Compressor, if the client’s have own recovery plant and the plant equipment are capable to adjust the addition CO2 load.

With the CO2 Revert Recovery System for Dry Ice Machines the efficiency of dry ice production leads to a final conversion rate of approx. 90-92 %.

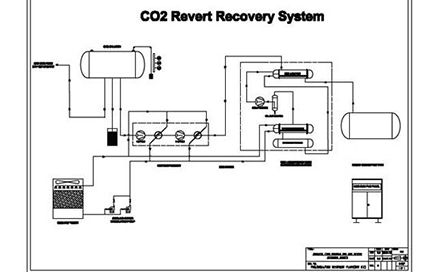

Major Equipment list of CO2 Revert Recovery System:

  • Balloon / Gas Holder
  • CO2 Gas Compressor
  • CO2 – Condenser/ Liquefier with Refrigeration Unit
  • Liquid CO2 Buffer Tank
  • Cooling Tower and Cooling Water Circulation Pump
  • Motor Control Panel with PLC

Additional Information:

  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Port of Dispatch: By Sea or By Road
  • Delivery Time: 8-12 Weeks from the date of your confirmed order along with requisite advance payment.
  • Packaging Details: Sea Worthy Packing for Export Project and Normal Packing for Indian's Project
