| Title | Detail |
|---|---|
| Capacity | 50 Kg/hr. to 1000 Kg/Hr. |
| Automatic Grade | Automatic |
| Design | Customized |
| Material | Suitable Material of Construction to make Food Grade Carbon Di-Oxide |
| Production Rate | 50 kg/hour to 1000 Kg/hour |
| Voltage | 415/380 Volt AC/ 3 Ph/ 50-60 Hz |
Brief Process Description

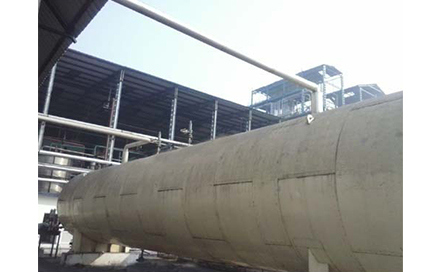

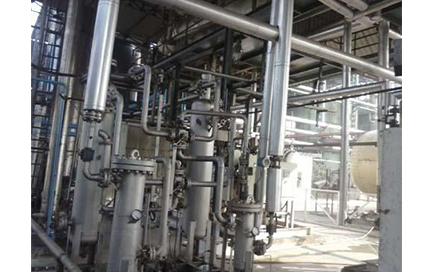

"SUPER CRYO" is able to design a customized solution or offer a standard CO2 production plant to meet and exceed any customer requirements. CO2-Production plants are based on burning of diesel, natural gas and/or kerosene. This complete & controlled fuel combustion process will generate flue gas with a high CO2 content. The generated flue gas shall be washed & cooled first with Caustic Soda Solution in Scrubber / DCC (Direct Contact Cooler). At the next stage, the use of a cold, chemical absorbent "MEA" (Mono Ethanol Ammine) only recovers CO2 out of the flue gas which is at a later stage released from its absorbent by adding heat and stripping process. The MEA solution is circulating and reused in process. The released CO2-Gas will be compressed, purified and dried in serveral defined steps and passes the liquefaction section to become CO2 liquid. Liquid CO2 will then be stored in a CO2-storage tank for further use.
Features of "SUPER CRYO" Plant
CO2 - Production From
Major List of Equipment
Additional Information:
